A NEW PERSPECTIVE ON VISUAL REWARDS

Think before you score.

Thinking Reward Model for Visual Generation

Xuehai Bai^1,4,*Zhenchen Tang^2,*Yang Shi^3,*,♠Dianyi Wang⁵

Tengfei Liu³Wanshun Su⁶Xuanyu Zhu³Ruohui Wang⁴Haiwen Diao⁷

Haotian Wang^8,†Xiaoling Gu^1,†Yuanxing Zhang³

¹HDU²CASIA³PKU⁴SenseTime⁵FDU⁶NWPU⁷NTU⁸THU

^* Equal Contribution^♠ Project Lead^† Corresponding Author

PaperarXiv CodeGitHub Hugging FaceModel & Dataset

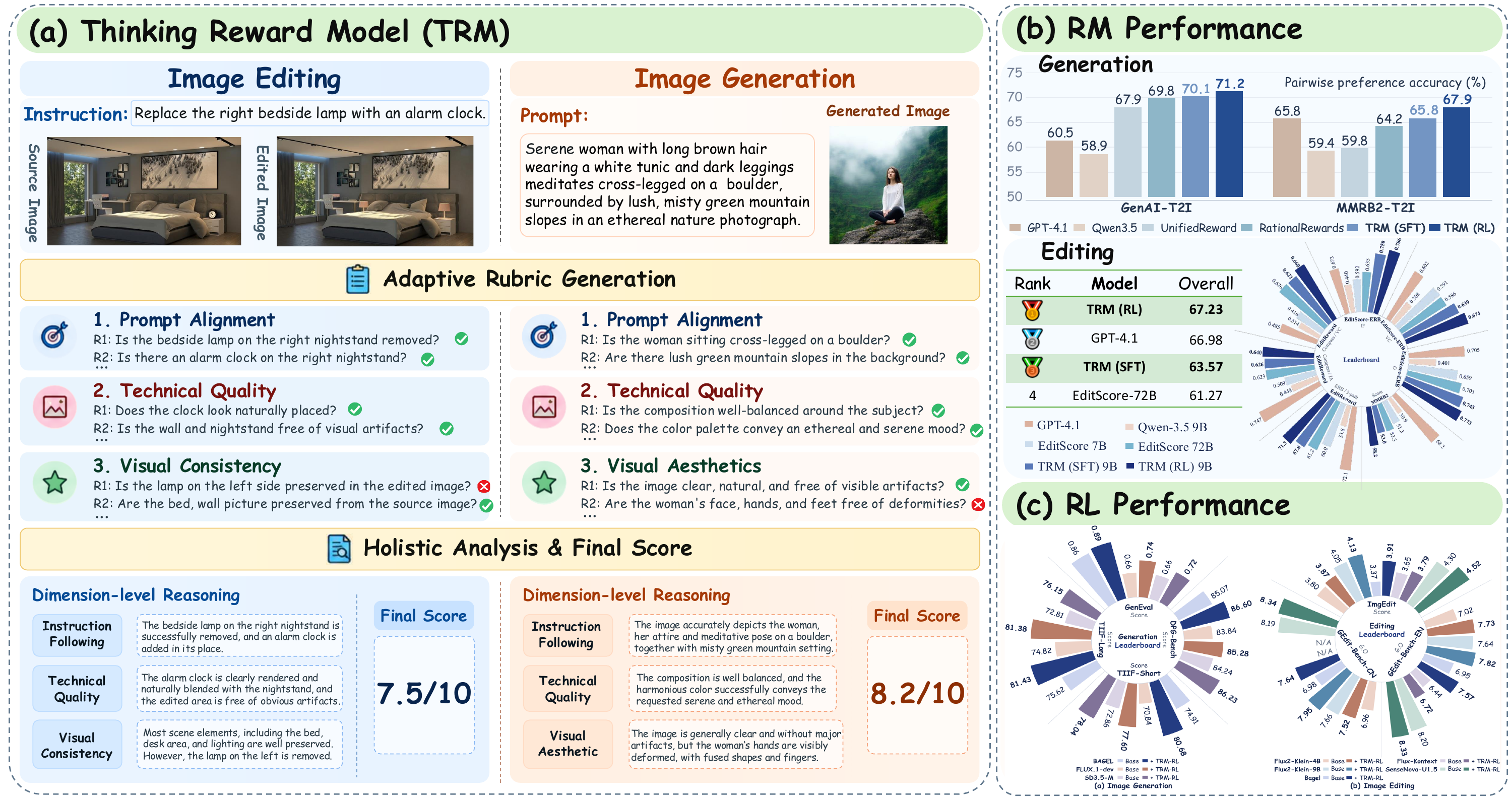

Complete paper teaser: Thinking Reward Model evaluates image editing and generation through adaptive rubrics, holistic analysis, and pointwise rewards; the right panel shows reward-model and downstream reinforcement-learning results.

01 / THE IDEAREASONING BEFORE REWARD

A better score starts with a better question.

Visual reward models often map an image directly to a score, leaving the evaluation criteria implicit. TRM makes those criteria explicit: it generates rubrics for each individual case, inspects the candidate against them, and aggregates the evidence into a fine-grained reward. The same process supports both image generation and editing, while adapting what it checks to the task and the image.

02 / THE METHODONE PROCESS. CASE-SPECIFIC CRITERIA.

Reason first. Reward with purpose.

A shared evaluation process across tasks. Criteria that adapt to every candidate.

01R

Determine

Formulate atomic rubrics around the task condition and candidate image.

WHAT SHOULD WE CHECK?

02J

Inspect

Evaluate the candidate against each rubric with an explicit Yes / No judgment.

WHAT DOES THE IMAGE SHOW?

03H

Aggregate

Summarize the evidence into assessments for each evaluation dimension.

HOW DO THE DETAILS ADD UP?

04s

Score

Produce a fine-grained pointwise reward grounded in the assessment.

HOW WELL DOES IT PERFORM?

PD-GRPO

Learn preferences. Keep the nuance.

Conventional pairwise optimization can push scores toward opposite extremes. Pairwise Dual-Group Relative Policy Optimization rewards sufficient separation, then stops rewarding further gap expansion.

The complete data construction and training pipeline is shown below, from structured annotation and supervised fine-tuning to preference optimization.

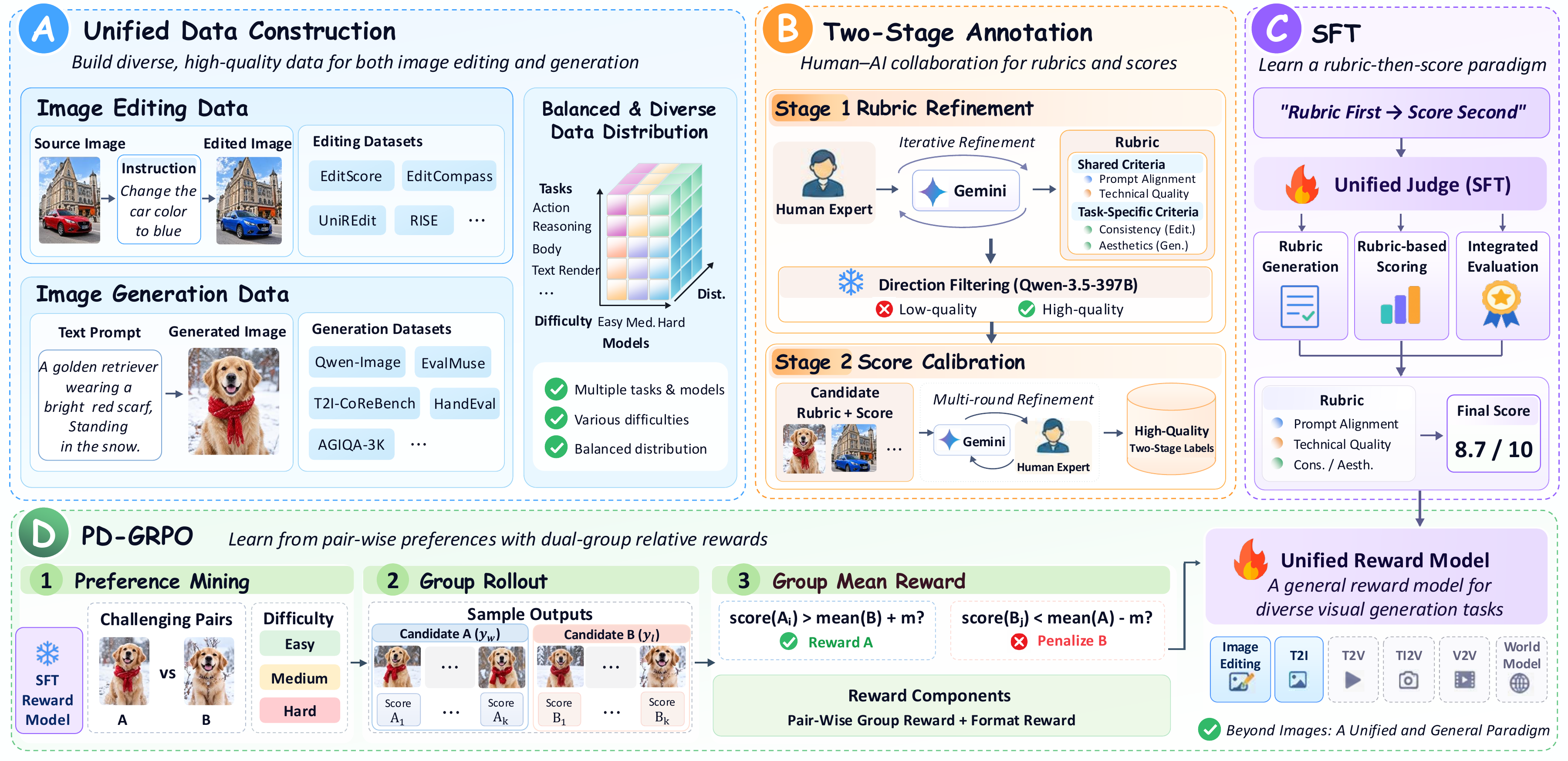

Complete training figure with unified data construction, two-stage annotation, supervised fine-tuning, and PD-GRPO preference optimization. — Data construction and training pipeline for the Thinking Reward Model.

03 / THE EVIDENCEMEASURED ACROSS GENERATION & EDITING

Evaluation Results

Reward modeling benchmarks

Selected image generation reward-model benchmarks from the manuscript. Accuracy in percent; higher is better.
Model	Parameters	GenAI-T2I ↑	MMRB2-T2I ↑
GPT-4.1 Proprietary	—	60.5	65.8
Gemini 3 Pro Proprietary	—	73.1	74.4
Qwen3-VL	32B	66.9	64.1
HPSv3	7B	70.8	60.2
UnifiedReward	7B	67.9	59.8
RationalRewards	8B	69.8	64.2
Qwen3.5 · same-protocol baseline	9B	58.9	59.4
TRM (SFT)	9B	70.1	65.8
TRM (RL) OURS	9B	71.2	67.9

Selected baselines from the manuscript. Accuracy (%), higher is better. Pointwise models are evaluated over non-tied predictions.

Selected image editing reward-model benchmarks from the manuscript. Higher is better in each column.
Model	Parameters	ERB overall ↑	MMRB2 (%) ↑	EditReward-ERB (%) ↑
GPT-4.1 Proprietary	—	0.705	68.2	72.1
Gemini 3.1 Pro Proprietary	—	0.841	74.9	73.9
Qwen2.5-VL	72B	0.621	65.8	67.8
EditScore	7B	0.659	51.3	60.0
EditScore	72B	0.703	53.3	65.2
FIRM-Reward	8B	0.607	44.5	50.9
Qwen3.5 · same-protocol baseline	9B	0.401	30.9	33.8
TRM (SFT)	9B	0.743	53.0	67.8
TRM (RL) OURS	9B	0.773	58.2	71.3

Selected metrics and baselines from the manuscript. ERB overall refers to EditScore-ERB; EditReward-ERB uses the 2-path metric. Higher is better.

Downstream task gains

Baseline TRM-guided RLΔ absolute score change

Downstream image generation results from the manuscript. Each cell shows baseline, TRM-guided RL, and absolute change. Higher scores are better.
Model	GenEval ↑	DPG-Bench ↑	TIIF-Short ↑	TIIF-Long ↑
BAGEL	0.860.89Change: +0.03	85.0786.60Change: +1.53	74.9180.68Change: +5.77	75.6281.43Change: +5.81
FLUX.1-dev	0.660.73Change: +0.07	83.8485.28Change: +1.44	70.8477.60Change: +6.76	74.8281.38Change: +6.56
SD3.5-M	0.660.72Change: +0.06	84.2486.23Change: +1.99	72.8678.04Change: +5.18	72.8176.15Change: +3.34

Downstream image editing results from the manuscript. Each cell shows baseline, TRM-guided RL, and absolute change. G_SC, G_PQ, and G_O retain the manuscript's metric names. Higher scores are better; a dash means not reported.
Model	ImgEdit ↑	GEdit-Bench-EN			GEdit-Bench-CN
Model	ImgEdit ↑	G_SC ↑	G_PQ ↑	G_O ↑	G_SC ↑	G_PQ ↑	G_O ↑
Flux2-Klein-4B	3.803.87Change: +0.07	7.688.20Change: +0.52	7.317.74Change: +0.43	7.027.73Change: +0.71	7.657.90Change: +0.25	7.277.65Change: +0.38	6.967.52Change: +0.56
Flux2-Klein-9B	4.054.13Change: +0.08	8.398.43Change: +0.04	7.577.82Change: +0.25	7.647.82Change: +0.18	8.378.45Change: +0.08	7.597.95Change: +0.36	7.667.95Change: +0.29
BAGEL	3.373.91Change: +0.54	7.898.39Change: +0.50	6.687.26Change: +0.58	6.957.57Change: +0.62	7.928.40Change: +0.48	6.767.33Change: +0.57	6.987.64Change: +0.66
Flux-Kontext	3.653.79Change: +0.14	7.077.22Change: +0.15	7.307.51Change: +0.21	6.446.72Change: +0.28	—	—	—
SenseNova-U1.5	4.304.52Change: +0.22	9.109.14Change: +0.04	7.637.83Change: +0.20	8.208.33Change: +0.13	9.109.09Change: −0.01	7.617.87Change: +0.26	8.198.34Change: +0.15

G_SC, G_PQ and G_O follow the manuscript's metric names; G_O is the overall score. — Not reported.

04 / IN PRACTICEREAL EXAMPLES FROM THE MANUSCRIPT

The difference is in the details.

More faithful instructions. More precise compositions. Explore visual models before and after TRM-guided RL.

Image Generation

BAGEL · BASELINE & TRM-GUIDED RL

Complete BAGEL qualitative comparison figure, retaining all six baseline and TRM-guided pairs with their original prompts and labels. — Qualitative comparison of BAGEL before and after TRM-guided reinforcement learning.

Image Editing

SENSENOVA-U1.5 · SOURCE, BASELINE & AFTER RL

Complete SenseNova-U1.5 qualitative comparison figure, retaining all six examples, source images, baseline edits, optimized edits, and original Chinese and English instructions. — Qualitative comparison of SenseNova-U1.5 before and after RL fine-tuning with TRM.
